Using the MeDIL package to find a minMCM on real data

This post will demonstrate how to use the MeDIL Python package to find a minimal Measurement Dependence Inducing Latent causal model (minMCM) on a real data set. The steps here mirror those from my paper on MeDIL causal models, which you can consult for more detailed analysis of the results and connections to the literature.

• The Data set
• Independence tests
  • Pearson correlation
  • Distance correlation
  • Hilbert-Schmidt Independence Critereon
• Finding a minMCM
• Results

The Data set

We will analyze the Stress, Religous Coping, and Depression data set, collected by Bongjae Lee from the University of Pittsburgh in 2003 (for more information, see the technical report it was first published in). To begin, simply download the data set, e.g., with

wget https://causal.dev/post/minmcm_application/depressioncoping.dat

The Python script used for analysing this data set is split into parts and presented throughout the rest of the post. The complete script can be downloaded at the end of the post.

First, we have all of the import statements:

# We'll use these for processing data, computing Pearson Correlation, and displaying results.
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

# We'll use these for computing the distance correlation.
from dcor import distance_correlation as distcorr, pairwise
from multiprocessing import Pool

# We'll use these for running the independence tests.
from medil.independence_test import hypothesis_test
from medil.independence_test import dependencies

# add HSIC imports here? or include in medil?

Next, we can load the data into Python and prepare it for indpendence testing:

# We only need to read the data for the 61 questions we're interested in, so we leave out demographic questions and ID numbers, etc.
raw = np.genfromtxt('depressioncoping.dat', names=True, delimiter='\t', usecols=np.arange(2, 63))
var_names = raw.dtype.names

# Now we remove the rows containing NaN values, e.g., from a subject not completing the questionnaire.
raw_array = raw.view(np.float).reshape(raw.shape + (-1,))
nan_row_mask = np.isnan(raw_array).any(axis=1)

data = raw_array[~nan_row_mask]

Independence tests

The causal structure learning algorithm find_minMCM is constraint-based, so we must first estimate the independence constraints from the data set. Importantly, find_minMCM requires no assupmtions about linearity, and so we want to use a non-linear measure of dependence, such as the distance correlation or Hilbert-Schmidt Independence Criterion (HSIC) as opposed to the commonly used (but in our case unecessarily restrictive) linear Pearson correlation. To get a sense of how these measures are different, we will take a look at each of them.

Pearson correlation

We can compute and visualize the pairwise Pearson correlation coefficients:

# Compute the Pearson correlation.
corr = np.corrcoef(data, rowvar=False)

# We're interested in magnitude but not the sign.
abs_corr = np.abs(corr)

# Make a mask for a nicer plot.
mask = np.zeros_like(corr)
mask[np.triu_indices_from(mask)] = True

# Make and display the plot.
sns.heatmap(corr, mask=mask, square=True, vmax=1, vmin=0, xticklabels=var_names, yticklabels=var_names)
plt.show()

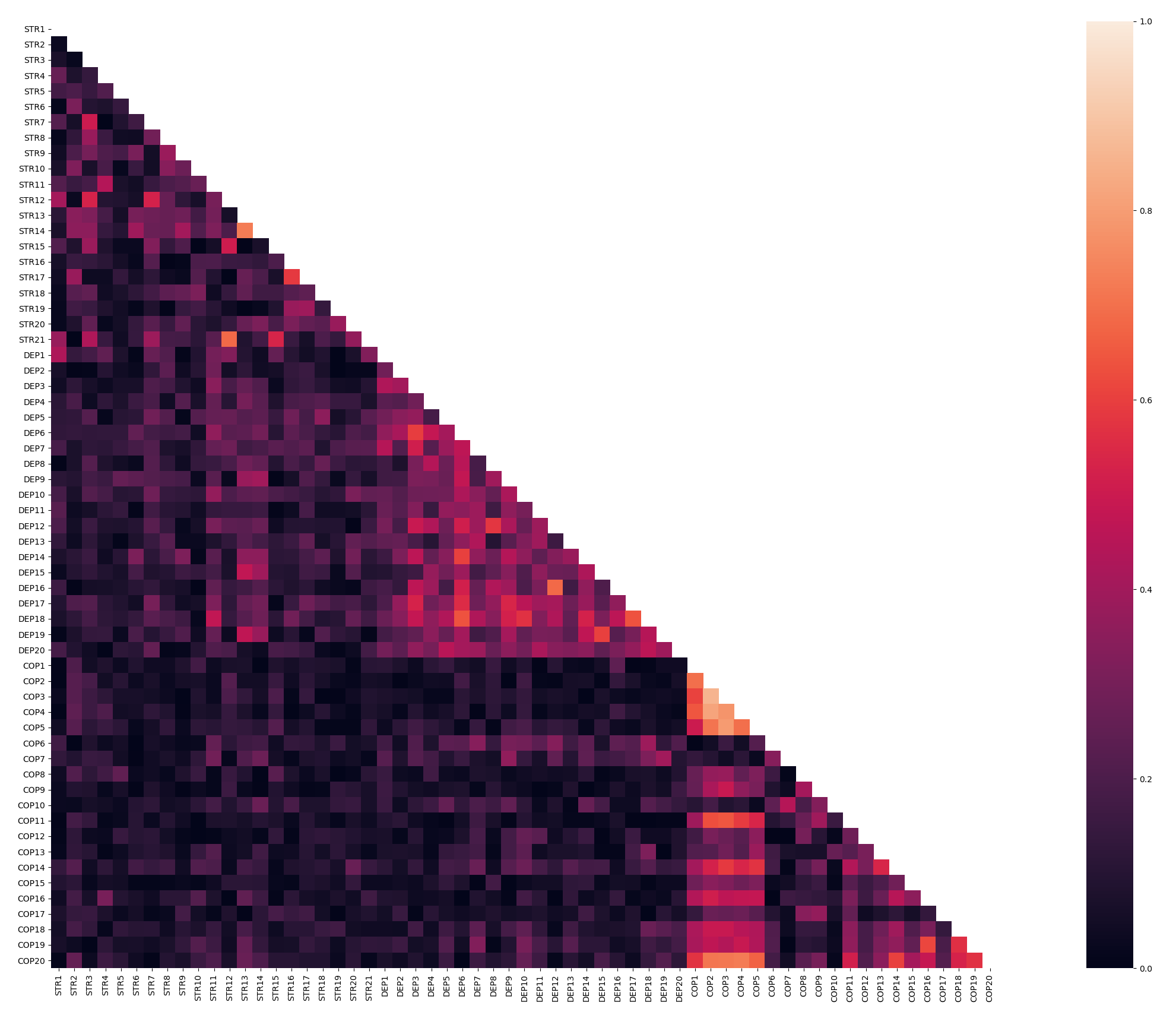

The result is the following heatmap:

Distance correlation

We can compute and visualize the pairwise distance correlation coefficients:

# Compute the distance correlation, using multiple cores to speed up processing.
with Pool() as pool:
    dist_corr = pairwise(distcorr, data.T, pool=pool)

# Make and display the plot.
sns.heatmap(dist_corr, mask=mask, square=True, vmax=1, vmin=0, xticklabels=var_names, yticklabels=var_names)
plt.show()

The result is the following heatmap:

Hilbert-Schmidt Independence Criterion

Finding a minMCM

Results
